The Master Series General Purpose Fume Hood is designed for standard tasks in laboratories of any field. The main components of the hood are manufactured from solid sheet metal, 2 mm thick, by shaping on specialized equipment without welding. Technological openings are precision-cut using TRUMPF laser equipment. All surfaces are finished with a chemically resistant powder coating. The double-wall construction with an air space of at least 40 mm provides effective protection and significantly extends the fume hood's service life.
The high quality of materials used, combined with a wide selection of work surfaces and accessories, allows for the creation of the perfect fume hood tailored to the specific tasks in your laboratory.
provides audible and visual alarms in the event of low airflow or an unsafe damper position.
-The working space is enclosed by two dependent lift screens made of 5 mm thick glass.
-Can be fixed at any position (from 0 to 720 mm).
-Rear and top panels are removable.
-Work surface material is selected based on the client's specific needs:
- Ceramic slab
- Epoxy copolymer
- Monolithic plastic
- PVC-C
- Polypropylene
-Wide range of accessories available.
Included in the package:
-Metal connecting flange, Ø 250 mm — 1 pc.
-Electric flow control valve made of PVC-C — 1 pc.
-Flexible ducting, 3 m long, 250 mm diameter — 1 pc.
-Built-in splash-proof sockets with cover (IP54, 1.5 kW, 220V) — 3 pcs.
-Switch — 1 pc.
-16A circuit breaker — 1 pc.
-Light fixture, 2x18W — 1 pc.
- Технические характеристики:
Model
FC-80.86.230
FC-120.86.230
FC-150.86.230
FC-180.86.230
Dimensions (WxDxH), mm
800х860х2300
1200х860х2300
1500х860х2300
1800х860х2300
Construction
Work Surface
Selectable (Customer's choice)
Walls
Double walls with an air gap of at least 40 mm
Back and Top Panels
Removable
Protective Screen
Two dependent lift screens made of 5 mm thick impact-resistant laminated glass
Main Components
Solid sheet metal, 2 mm thick
Air Flow Controller
Integrated AFA500 system
- Аксессуары:

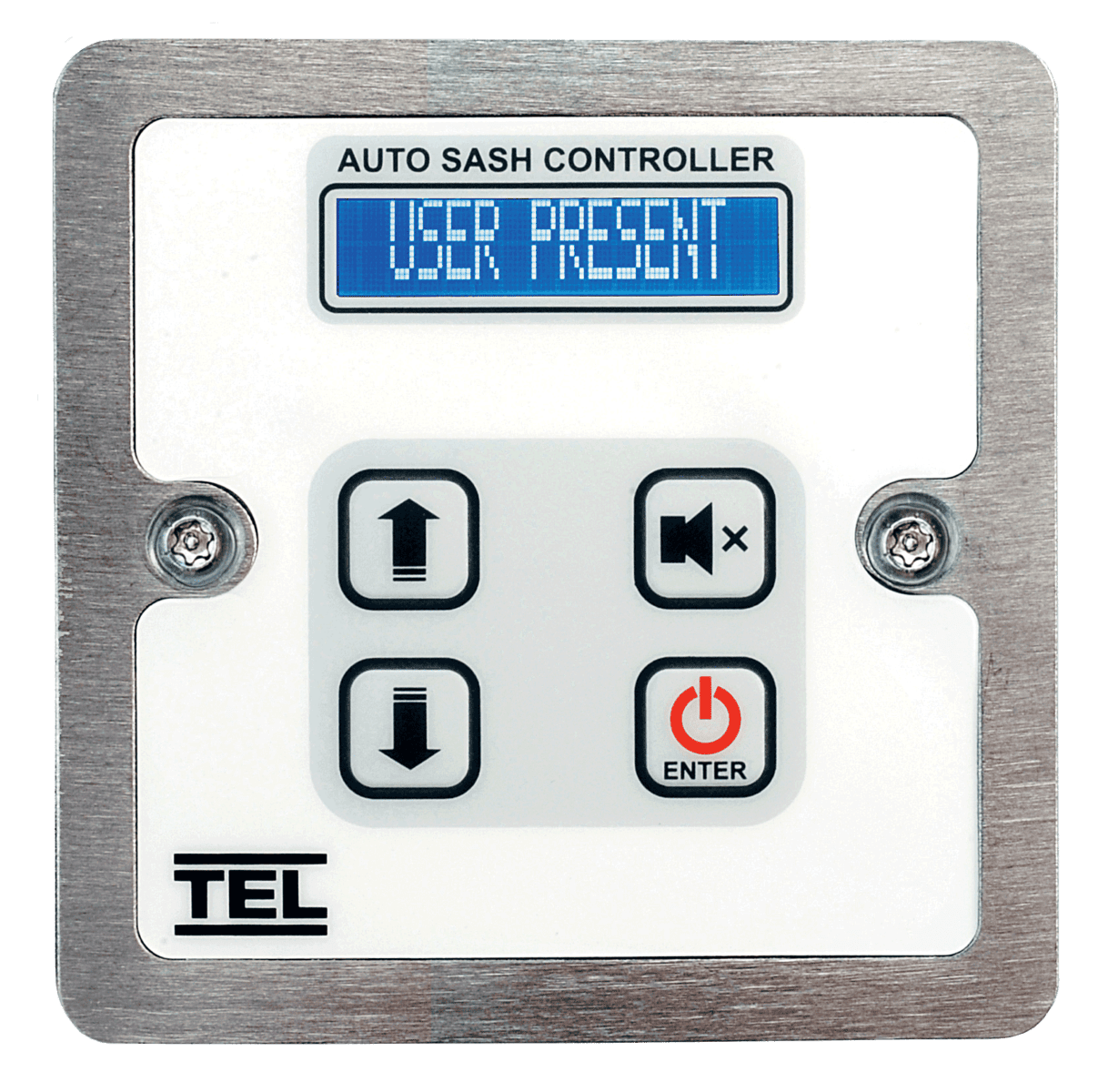

The Auto Sash system is designed for the automatic opening and closing of the fume hood sash. The automatic sash controller is intended to automatically close the sash when an operator is not present in front of the fume hood. A passive infrared sensor (PIR) continuously monitors the working area in front of the hood. When an operator is present, the sash can be operated manually using the optional Tiptronic touch control feature or via an optional foot switch. If no movement is detected and the sash opening is clear, the sash automatically closes after a preset time delay. An automatic opening option is also available.
The integrated AFA1000/E system is designed to ensure user safety by monitoring and controlling air flow through automatic damper adjustment.

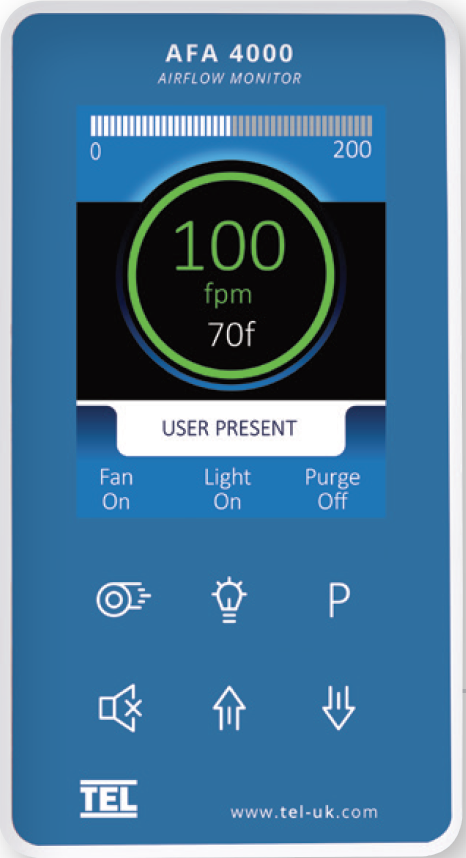

The integrated AFA4000 system is designed to ensure user safety by monitoring and controlling air flow through automatic damper adjustment, with the added capability to manage the automatic sash opening and closing system.

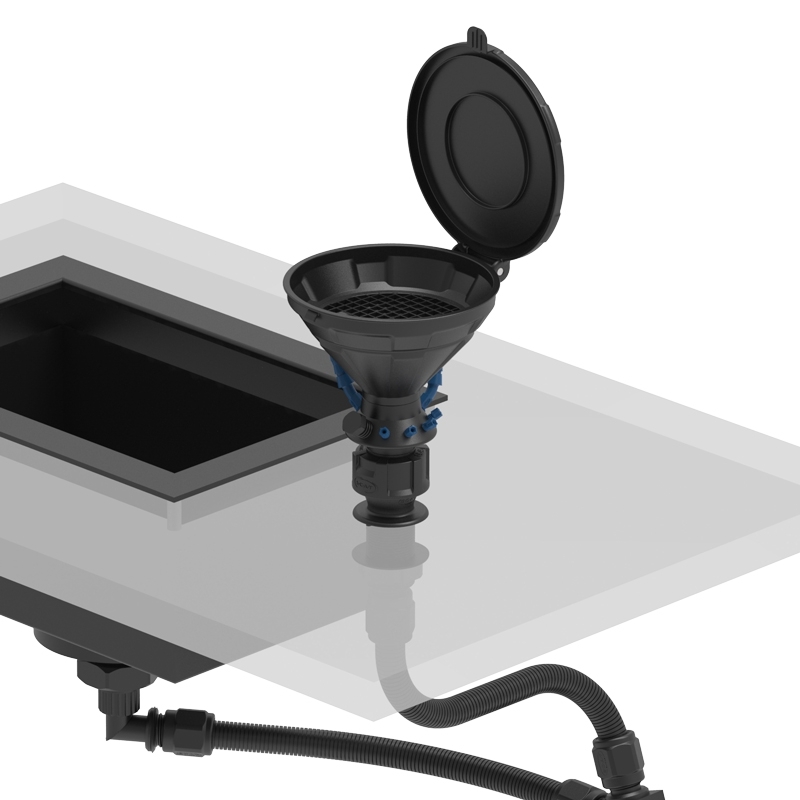

The SCAT drain system is a chemical waste collection system equipped with a canister fill level sensor. When the canister is full, the sensor triggers an audible alarm. All components (canisters, hoses, valve) are made of electrically conductive, low-pressure polytetrafluoroethylene (PTFE) and are resistant to a wide range of chemicals. The drain funnel is installed directly into the work surface within the fume hood's working zone. The entire drain system is grounded.
The housing of the fluorescent luminaire is manufactured from 0.8 mm thick AISI 304 stainless steel using a pressing process, without welding. The transparent part is made of toughened glass.
Operating temperature range: from -30°C to +55°C. Power: 18W / 36W.
Complies with explosion-proof classifications: Ex II 2 GD, Ex d IIC T3, Ex tD A21 IP65 T200°C.
Conforms to European Directive 94/9/EC (ATEX) and is suitable for use in Zone 1/Zone 2, and Zone 21/Zone 22.
All faucet fittings and tubing are made of brass and coated with epoxy powder. The valves are manufactured from chemically resistant polypropylene, conforming to the DIN color code standard. Connections are silver-soldered using a 40% silver solution for reinforcement and an aesthetically pleasing finish. The faucet range includes: water faucets, combustible gas faucets, and non-combustible gas faucets.
We also offer faucets for the medical industry, including antibacterial mixers, chrome-plated mixers, foot-pedal operated mixers, and stainless steel mixers.
These fans are used in laboratories, exhaust probes, and in chemical, pharmaceutical, and galvanic production, with explosion-proof models also available.
They are also widely applied in environments requiring resistance to chemical reagents, quiet operation, and energy efficiency.
Installed to prevent the release of harmful substances into the environment, ensuring both the safety of laboratory personnel and environmental protection.
Scrubbers are broad-spectrum gas absorbers. They are used to ensure personnel safety in laboratories and to reduce the emission of toxic substances into the atmosphere.
They are used directly in conjunction with fume hoods to absorb toxic and corrosive gases.

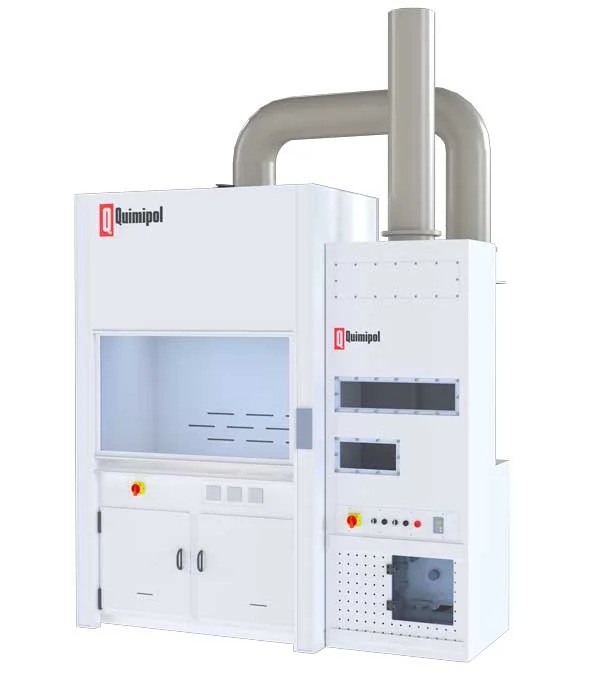

The Q series scrubbers (vertical absorption scrubbers utilizing a countercurrent flow) are fully constructed from polypropylene, providing them with high corrosion resistance. Due to their very compact design, they have a limited absorption capacity and are suitable for installations with restricted space.
The LSV series scrubbers (overhead absorption scrubbers) are fully constructed from polypropylene, providing them with high corrosion resistance. Due to their very compact design, they have a limited absorption capacity.
Designed for neutralizing effluent water. They ensure safety and environmental protection. Compact and easy to install. Feature low noise levels – max. 54 dB. Can operate in conjunction with scrubbers to neutralize scrubbing liquid or independently.
Installed directly on the cabinet flanges (Ø200mm and 250mm). Equipped with easily removable covers and adsorption filters. Additional filter media material can be ordered as needed.

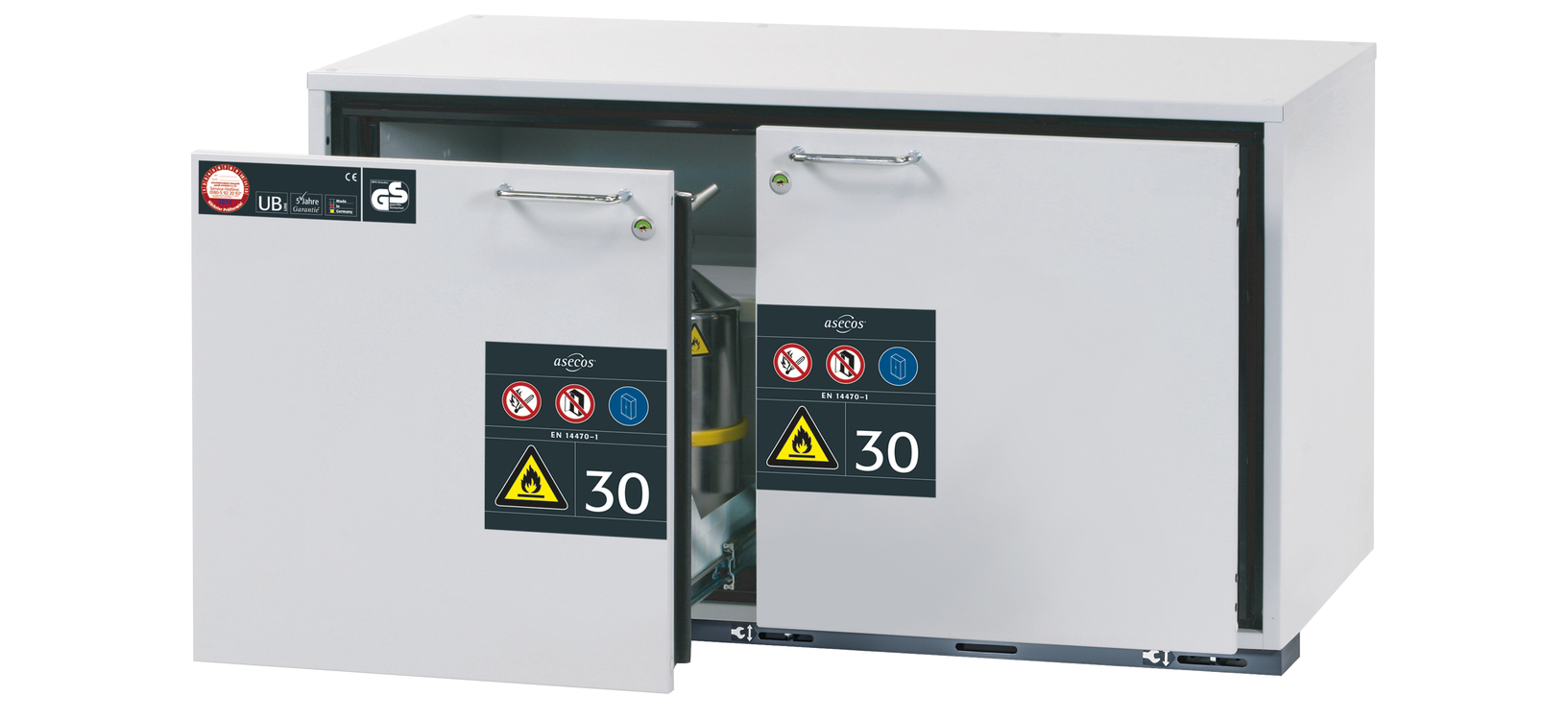

The Asecos (Germany) built-in cabinet for fume hoods is designed for storing flammable liquids in accordance with DIN EN 14470-1. The cabinet features an automatic closing mechanism that activates when the ambient temperature rises (at 47°C), as well as door/join thermal insulation that foams during a fire to reliably seal the interior space.
This cabinet ensures the safe storage of acids and other aggressive substances. It is divided into two compartments, each equipped with a 120x60 mm flange for connection to exhaust ventilation systems. The right compartment features a removable shelf. The cabinet is supplied with a tray made of polypropylene or PVC-C.
The frame is constructed from 25x25 mm metal profiles, finished with a chemically resistant powder coating.
is constructed from polypropylene. It is equipped with 100 mm anti-static wheels with brakes. The cabinet features a door without a lock and includes one polypropylene tray. The base consists of a frame made of rectangular-section metal profiles with a powder-coated textured finish. It is fitted with 100 mm anti-static wheels, two of which have brakes.
Available in various materials characterized by high moisture resistance.
Model
Length (mm)
Width (mm)
Depth (mm)
Material
1101
255
105
160
Glazed Ceramic
SGS2-DI
260±3
110±3
150±3
Epoxy Copolymer
STB9
500±3
200±3
150±3
STD4
700±3
150±3
120±3
STM13
1500±3
150±3
100±3
Circular Drain Sinks
SC8C
Габариты, мм
300*150
Epoxy Copolymer
C40
Габариты, мм
400*185
Available in various materials characterized by high moisture resistance.
.
Model
Length (mm)
Width (mm)
Depth (mm)
Material
2745
530±3
380±3
250
Glazed Ceramic
2845
680±3
380±3
250
2940
895±3
390±3
250
SPL14 (XD) -DIA
610
406
400
Epoxy Copolymer
SFL18-DIA
711
381
300
SPL14(X)-DI
610
406
300
SGL10-DI
400
400
300
SH20DI
680
780
178

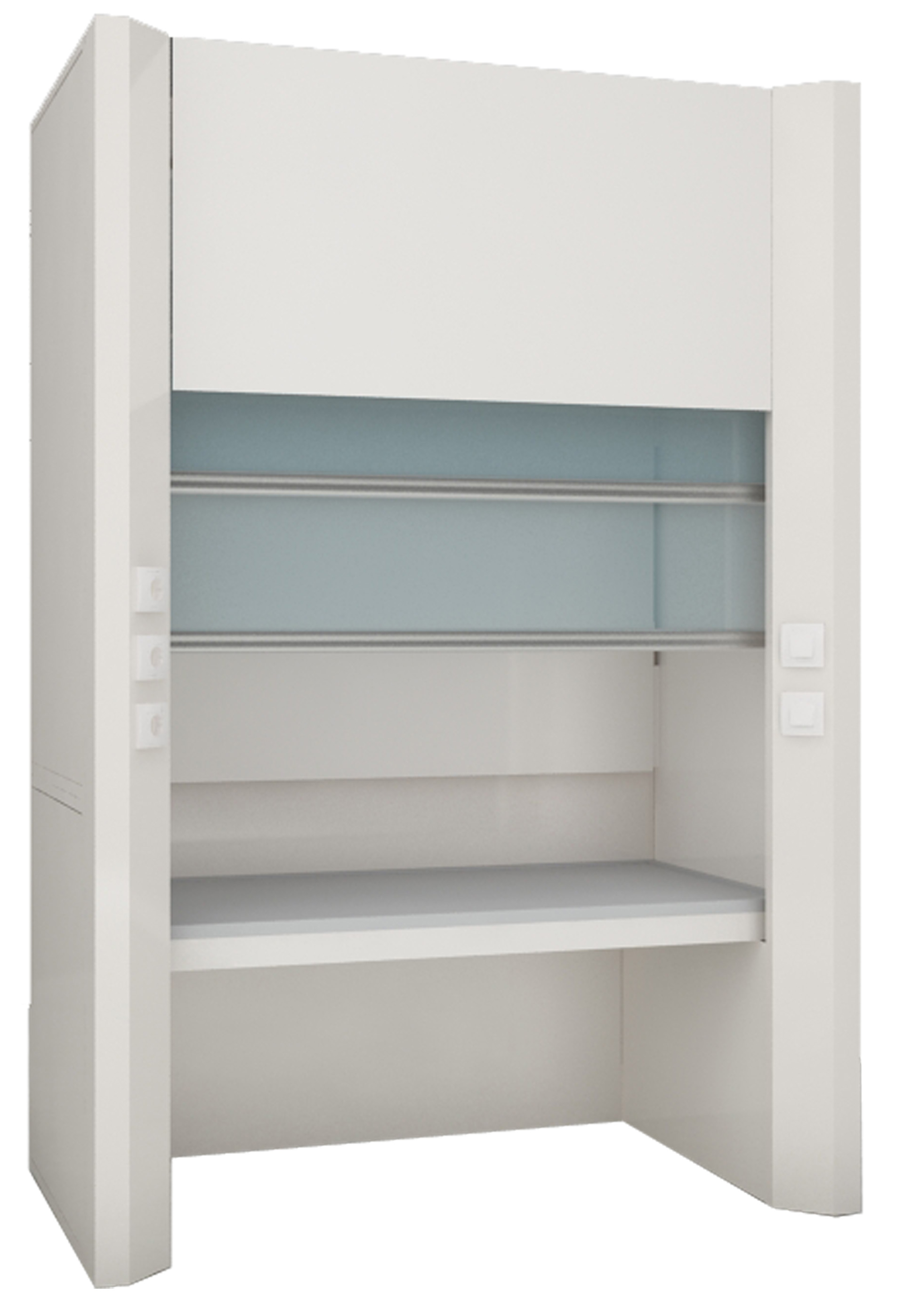

The Master Series Fume Hood with Low Work Surface is designed for tasks requiring the use of tall instruments, including distillation systems. The height of the work surface from the floor is 510 mm. The main components of the hood are manufactured from solid sheet metal, 2 mm thick, by shaping on specialized equipment without welding. Technological openings are precision-cut using TRUMPF laser equipment. All surfaces are finished with a chemically resistant powder coating. The double-wall construction with an air space of at least 40 mm provides effective protection and significantly extends the fume hood's service life.
The high quality of materials used, combined with a wide selection of work surfaces and accessories, allows for the creation of the perfect fume hood tailored to the specific tasks in your laboratory.
обеспечивает звуковой и визуальные сигналы тревоги в случаях низкого потока воздуха или небезопасного положения заслонки.
- рабочее пространство закрывается двумя зависимыми подъемными экранами, из стекла толщиной 5 мм
- возможность фиксирования в любом положении
- задняя и верхняя панели – съемные
- материал рабочей поверхности подбирается под задачу клиента:
- Керамическая плита
- Эпоксидный сополимер
- Монолитный пластик
- PVC-C
- Полипропилен
- широкий выбор аксессуаров
в комплекте:
-соединительный металлический фланец Ø 250 мм 1шт
-клапан электрический регулирования потока из PVC-C - 1 шт
-гофра 3м. 250мм-1шт
-встроенные брызгозащищенные розетки ip54 с крышкой (1,5кВт) 220В - 3 шт,
-выключатель - 1 шт
-автомат 16А - 1 шт
-светильник 2х18W
The work surface height is 510 mm from the floor (approx. 20 in).
- Технические характеристики:
Model
LFC-120.86.230
LFC-150.86.230
LFC-180.86.230
Dimensions (WxDxH), mm
1200х860х2300
1500х860х2300
1800х860х230
Construction
Work Surface
Selectable (Customer's choice)
Work Surface Location
Low; height from floor: 510 mm
Walls
Double walls with an air gap of at least 40 mm
Back and Top Panels
Removable
Protective Screen
Two dependent lift screens made of 5 mm thick impact-resistant laminated glass
Main Components
Solid sheet metal, 2 mm thick
Air Flow Controller
Integrated AFA500 system
- Аксессуары:
Система автоматического открывания и закрывания подъемного экрана. Контроллер автоматической створки предназначен для автоматического закрытия створки, когда оператора нет перед вытяжным шкафом. Пассивный инфракрасный датчик (PIR) постоянно контролирует рабочую зону перед вытяжным шкафом. Когда оператор присутствует, створкой можно управлять вручную с помощью дополнительной сенсорной функции Tiptronic или с помощью дополнительного ножного переключателя. Если движение не обнаружено и отверстие в створке свободно, створка автоматически закрывается через заданное время. Опция автоматического открытия также доступна.
Встроенная система AFA1000/E разработана для обеспечения безопасности пользователя, мониторинга и контроля потока воздуха посредством автоматической регулировки заслонки.Встроенная система AFA4000 разработана для обеспечения безопасности пользователя, мониторинга и контроля потока воздуха посредством автоматической регулировки заслонки и с возможностью управления системой автоматического открывания и закрывания подъемного экрана.
Сливная система scat системой сбора химических отходов, укомплектован датчиком контроля уровня заполнения канистры. При заполнении датчик сигнализирует звуковым сигналом канистры. Все элементы (канистры, шланги, кран) изготовлены их электропроводящего политетрафторэтилена низкого давления и устойчивый к воздействию многих химикатов. Сливная воронка устанавливается прямо в столешницу в рабочей зоне вытяжного шкафа. Вся сливная система имеет заземление.Корпус люминесцентного светильника изготавливается из нержавеющей стали AISI 304 толщиной 0.8 мм путем прессовки, без сварки, прозрачная часть сделана из закаленного стекла.
Рабочая температура от -30 °C до 55 °C, мощность 18/36 Вт Соответствует классу взрывозащиты Ex II 2 GD, Ex d IIC T3, Ex tD A21 IP65 T200°C, Европейской Директиве 94/9/EC (ATEX) и пригоден для зоны 1/зоны 2, зоны 21/зоны 22
Все фитинги и трубки кранов изготовлены из латуни и покрыты эпоксидным порошком, вентили – из химически устойчивого полипропилена в соответствии со стандартом цветового кода DIN. Соединения спаяны с использованием 40% раствора серебра для усиления и придания приятного внешнего вида. Ассортимент кранов включает: кран для воды, кран для горючих газов, кран для негорючих газов.Также предлагаем краны для медицинской промышленности с антибактериальными смесителями, хромированными смесителями, смесителями, приводимыми в работу при помощи ножной педали, смесителями из нержавеющей стали.
Используются в лабораториях, вытяжных зондах, химическом, фармацевтическом и гальваническом производстве, в том числе доступны во взрывозащищенном исполнении.Также, находят широкое применение в условиях, где требуются устойчивость к воздействию химических реагентов, бесшумность и экономия энергии.
Устанавливаются для предотвращения выброса вредных веществ в окружающую среду, как для обеспечения безопасности персонала лаборатории, так и для защиты экологии.
Газопоглотители широкого спектра действия. Применяются для обеспечения безопасности работы персонала в лабораториях и снижения выбросов в атмосферу токсичных веществ.Используются непосредственно совместно с вытяжным шкафом для поглощения токсичных и коррозийных газов.
Скрубберы серии Q (вертикальный абсорбционный скруббер, использующий противоточный поток ) полностью изготовлены из полипропилена , что придает им большую коррозионную стойкость . Поскольку это очень компактное оборудование, они имеют ограниченную поглощающую способность.
Скрубберы серии LSV ( абсорбционный скруббер над шкафом ) полностью изготовлены из полипропилена , что придает им большую коррозионную стойкость . Поскольку это очень компактное оборудование, они имеют ограниченную поглощающую способность.Предназначены для нейтрализации отработанной воды. Обеспечивают безопасность и охрану окружающей среды. Компактны и просты в установке. Имеют низкий уровень шума – макс. 54 дБ. Могут работать совместно со скрубберами для нейтрализации промывочной жидкости или независимо от них.
Устанавливаются непосредственно на фланец шкафа (Ø200 и 250 мм). Имеют легкосъемные крышки и адсорбционные фильтры. Можно заказать дополнительное полотно материала для изготовления фильтров.
Встраиваемая в вытяжные шкафы тумба Asecos (Германия) предназначена для хранения ЛВЖ в соответствии с DIN EN 14470-1. Тумба имеет механизм автоматического закрывания при повышении окружающей температуры (47°С) и термоизоляцию дверей или стыков, вспенивающуюся при пожаре и надежно герметизирующую внутреннее пространство.Тумба обеспечивает безопасное хранение кислот и других агрессивных веществ. Тумба разделена на два отделения, в каждом из которых есть фланец, 120х60 мм, для соединения с вытяжными коммуникациями. В правом отделении расположена съемная полка. Тумба комплектуется кюветой из полипропилена или PVC-C.
- Каркас из металлического профиля 25х25 мм, окрашенного химстойкой порошковой краской;
Тумба подкатная для хранения и перелива кислот выполнена из полипропилена. На колесах антистатических 100 мм со стопорами. С дверцей без замка. Одна полипропиленовая кювета. Основание - каркас, выполненный из металлического профиля прямоугольного сечения, окрашенного порошковой краской с фактурой шагреневой кожи. Колеса антистатические 100 мм (два из которых - со стопором).
Могут быть исполнены из различных материалов, которые отличающихся высокой влагоустойчивостью.Модель
Длина мм
Ширина мм
Глубина мм
Материал
1101
255
105
160
глазурированная керамика
SGS2-DI
260±3
110±3
150±3
эпоксидный
сополимер
STB9
500±3
200±3
150±3
STD4
700±3
150±3
120±3
STM13
1500±3
150±3
100±3
Круглые сливные раковины
SC8C
Габариты, мм
300*150
эпоксидный
сополимер
C40
Габариты, мм
400*185
Могут быть исполнены из различных материалов, которые отличающихся высокой влагоустойчивостью.Модель
Длина мм
Ширина мм
Глубина мм
Материал
2745
530±3
380±3
250
глазурированная керамика
2845
680±3
380±3
250
2940
895±3
390±3
250
SPL14 (XD) -DIA
610
406
400
эпоксидный
сополимер
SFL18-DIA
711
381
300
SPL14(X)-DI
610
406
300
SGL10-DI
400
400
300
SH20DI
680
780
178

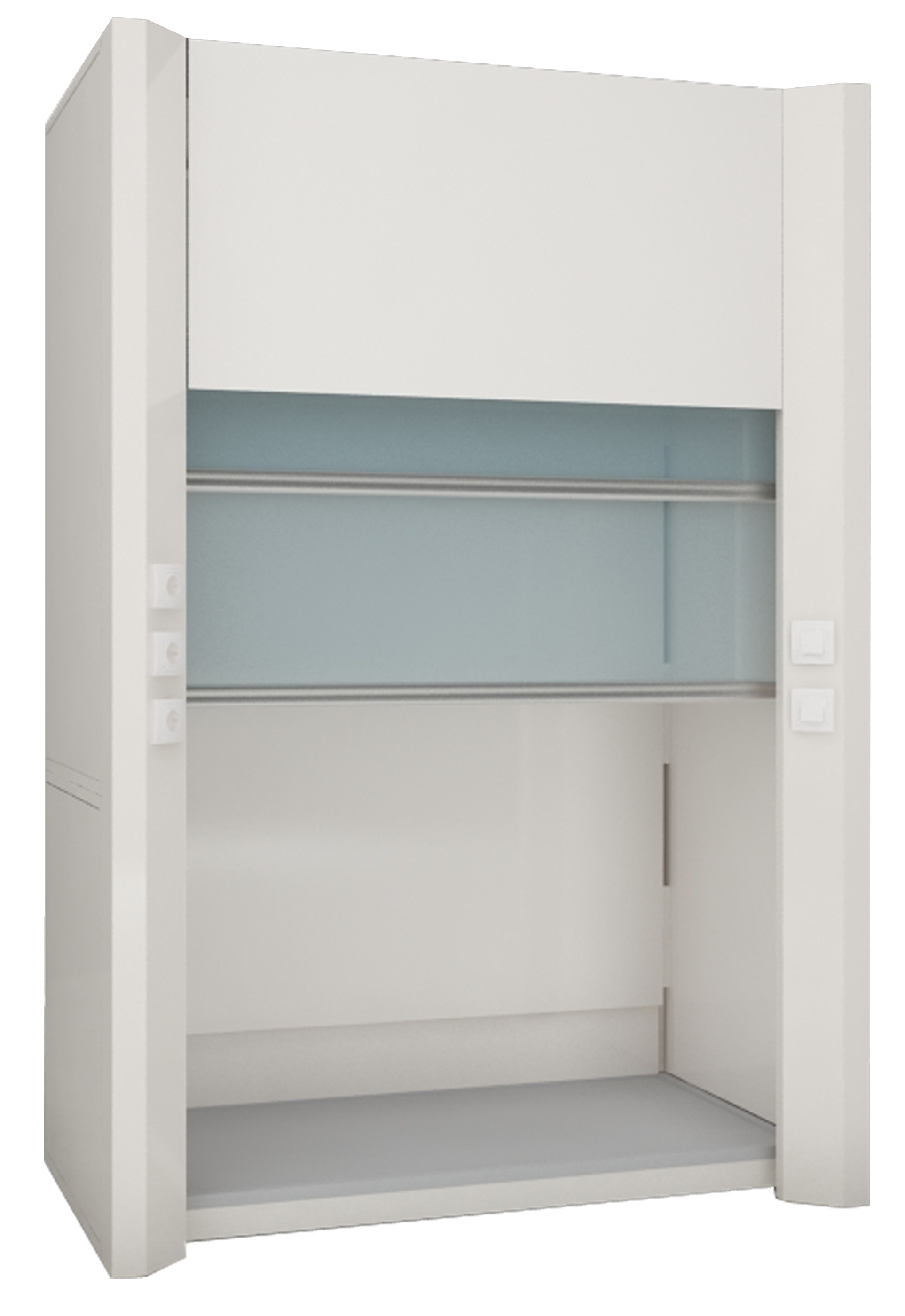

The Master series fume hood with a floor-level work surface is designed for working with tall instruments, as well as for tasks that require the operator to be inside the working chamber. The internal space of the fume hood is enclosed by three dependent screens. Work setups (e.g., chromatographic or distillation columns) can be assembled separately on a mobile table, which can then be placed inside the hood chamber as needed. The hood fully meets the requirements for working with chemicals, aggressive volatile substances, and toxic reagents, offers a long service life, is convenient to use, and is environmentally safe. The hood can be equipped with a wide range of additional accessories, allowing it to be precisely configured according to the required functions.
provides audible and visual alarms in cases of low airflow or an unsafe damper position.
- The working space is enclosed by two dependent lifting screens made of 5 mm thick glass.
- Can be locked in any position.
-
- The rear and side panels are removable.
- The material of the work surface is tailored to the client's specific task:
- Ceramic tile
- Epoxy resin
- Solid plastic
- PVC-C
- Polypropylene
- Wide selection of accessories available.
The set includes:
- Connecting metal flange Ø 250 mm — 1 pc.
- PVC-C electric flow control valve — 1 pc.
- Flexible duct 3 m, 250 mm — 1 pc.
- Built-in splash-proof sockets IP54 with cover (1.5 kW) 220V — 3 pcs.
- Switch — 1 pc.
- 16A circuit breaker — 1 pc.
- Light fixture 2x18W
- Allows the operator to be inside the chamber
- Accommodation of tall instruments
- Possibility of placing a mobile table inside the chamber
- Технические характеристики:
Model
FFC-150.86.230
FFC-180.86.230
Dimensions (LxWxH), mm
1500х860х2300
1800х860х230
Design
Work surface
optional
Work surface position
floor-level
Walls
double walls with an air space of at least 40 mm
Rear and top panels
removable
Protective screen
three dependent lifting screens made of impact-resistant laminated glass 5 mm thick
Main parts
solid sheet metal, 2 mm thick
Air controller
built-in AFA500 system
- Аксессуары:
The Auto Sash system is designed for the automatic opening and closing of the fume hood sash. The automatic sash controller is intended to automatically close the sash when an operator is not present in front of the fume hood. A passive infrared sensor (PIR) continuously monitors the working area in front of the hood. When an operator is present, the sash can be operated manually using the optional Tiptronic touch control feature or via an optional foot switch. If no movement is detected and the sash opening is clear, the sash automatically closes after a preset time delay. An automatic opening option is also available.
The integrated AFA1000/E system is designed to ensure user safety by monitoring and controlling air flow through automatic damper adjustmentThe integrated AFA4000 system is designed to ensure user safety by monitoring and controlling air flow through automatic damper adjustment, with the added capability to manage the automatic sash opening and closing system.
The SCAT drain system is a chemical waste collection system equipped with a canister fill level sensor. When the canister is full, the sensor triggers an audible alarm. All components (canisters, hoses, valve) are made of electrically conductive, low-pressure polytetrafluoroethylene (PTFE) and are resistant to a wide range of chemicals. The drain funnel is installed directly into the work surface within the fume hood's working zone. The entire drain system is grounded.
The housing of the fluorescent luminaire is manufactured from 0.8 mm thick AISI 304 stainless steel using a pressing process, without welding. The transparent part is made of toughened glass.
Operating temperature range: from -30°C to +55°C. Power: 18W / 36W.
Complies with explosion-proof classifications: Ex II 2 GD, Ex d IIC T3, Ex tD A21 IP65 T200°C.
Conforms to European Directive 94/9/EC (ATEX) and is suitable for use in Zone 1/Zone 2, and Zone 21/Zone 22.All faucet fittings and tubing are made of brass and coated with epoxy powder. The valves are manufactured from chemically resistant polypropylene, conforming to the DIN color code standard. Connections are silver-soldered using a 40% silver solution for reinforcement and an aesthetically pleasing finish. The faucet range includes: water faucets, combustible gas faucets, and non-combustible gas faucets.
We also offer faucets for the medical industry, including antibacterial mixers, chrome-plated mixers, foot-pedal operated mixers, and stainless steel mixers.
These fans are used in laboratories, exhaust probes, and in chemical, pharmaceutical, and galvanic production, with explosion-proof models also available.
They are also widely applied in environments requiring resistance to chemical reagents, quiet operation, and energy efficiency.
Installed to prevent the release of harmful substances into the environment, ensuring both the safety of laboratory personnel and environmental protection.
Scrubbers are broad-spectrum gas absorbers. They are used to ensure personnel safety in laboratories and to reduce the emission of toxic substances into the atmosphere.
They are used directly in conjunction with fume hoods to absorb toxic and corrosive gases.
Q сериялы скрубберлер (тік қарсы ток ағынын сіңіру скрубберлері) толығымен полипропиленнен жасалған, бұл оларға жоғары коррозияға төзімділік береді. Олар өте ықшам құрылғылар болғандықтан, олардың сіңіру қабілеті шектеулі.The LSV series scrubbers (overhead absorption scrubbers) are fully constructed from polypropylene, providing them with high corrosion resistance. Due to their very compact design, they have a limited absorption capacity.
Designed for neutralizing effluent water. They ensure safety and environmental protection. Compact and easy to install. Feature low noise levels – max. 54 dB. Can operate in conjunction with scrubbers to neutralize scrubbing liquid or independently.
Installed directly on the cabinet flanges (Ø200mm and 250mm). Equipped with easily removable covers and adsorption filters. Additional filter media material can be ordered as needed.
The Asecos (Germany) built-in cabinet for fume hoods is designed for storing flammable liquids in accordance with DIN EN 14470-1. The cabinet features an automatic closing mechanism that activates when the ambient temperature rises (at 47°C), as well as door/join thermal insulation that foams during a fire to reliably seal the interior space.
This cabinet ensures the safe storage of acids and other aggressive substances. It is divided into two compartments, each equipped with a 120x60 mm flange for connection to exhaust ventilation systems. The right compartment features a removable shelf. The cabinet is supplied with a tray made of polypropylene or PVC-C.
The frame is constructed from 25x25 mm metal profiles, finished with a chemically resistant powder coating.
This mobile cabinet for acid storage and dispensing is constructed from polypropylene. It is equipped with 100 mm anti-static wheels with brakes. The cabinet features a door without a lock and includes one polypropylene tray. The base consists of a frame made of rectangular-section metal profiles with a powder-coated textured finish. It is fitted with 100 mm anti-static wheels, two of which have brakes.Available in various materials characterized by high moisture resistance.
Model
Length (mm)
Width (mm)
Depth (mm
Material
1101
255
105
160
Glazed Ceramic
SGS2-DI
260±3
110±3
150±3
Epoxy Copolymer
STB9
500±3
200±3
150±3
STD4
700±3
150±3
120±3
STM13
1500±3
150±3
100±3
Circular Drain Sinks
SC8C
Dimensions (mm)
300*150
Epoxy Copolymer
C40
Dimensions (mm)
400*185
Available in various materials characterized by high moisture resistance.
Model
Length (mm)
Width (mm)
Depth (mm)
Material
2745
530±3
380±3
250
Glazed Ceramic
2845
680±3
380±3
250
2940
895±3
390±3
250
SPL14 (XD) -DIA
610
406
400
Epoxy Copolymer
SFL18-DIA
711
381
300
SPL14(X)-DI
610
406
300
SGL10-DI
400
400
300
SH20DI
680
780
178
